Catalog spares and agreed warranty posture vs. ad-hoc non-catalog parts—configuration emphasizes certified components for 5 gallon lines.
5 gallon water · rinse, fill, cap line

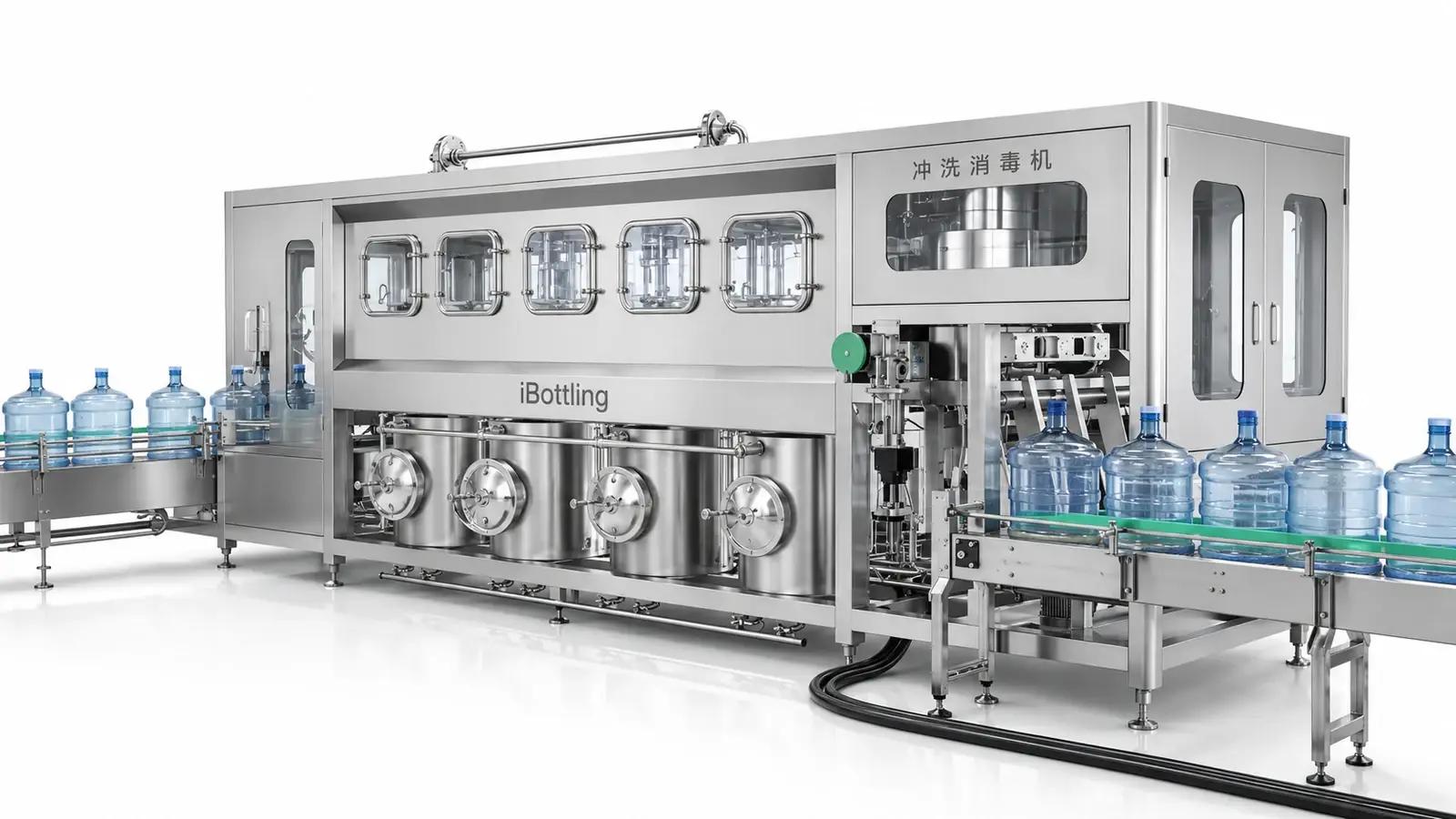

5 Gallon Water Filling Machine for 19L Bottles
Bottle washing, disinfecting, filling, and capping in one process. Built for returnable 5-gallon (18.9L) bottles with stainless steel food-contact construction. Final output depends on bottle format and site utilities—confirmed with your quotation.
Returnable 5-gallon (18.9L)Bottle type
Confirmed in the quotationConfiguration
Trusted by Global Beverage Leaders
Global Install BaseFactory AcceptanceCommissioning SupportCE CertificationISO 9001:2015
CE CertifiedISO 9001:2015Follows EHEDG GuidelinesPremium 316L Stainless Steel
Total cost of ownership
Engineered for high-throughput 5 gallon duty.
Configured for continuous bottling with stable fill accuracy, reduced manual handling, and quick bottle turnover. Final utility and performance values are fixed in quotation and FAT/SAT documents.
Capacity (max)
3,000BPH
Typical output for 5 gallon lines. Final output tied to bottle and cap spec.
Filling heads (max)
12heads
Typical configuration. Head count depends on selected model configuration.
5-Gallon (18.9L) Output
This 5-gallon water bottle filling machine series targets heavy returnable containers and carries washing, disinfecting, filling, and capping in one process. Capacity and filling-head count are confirmed for each project configuration and agreed in your quotation. Final performance is confirmed by final model, bottle drawing, and utility conditions.
The 18.9L (5-gallon) format is the primary target; other bottle classes are confirmed with your bottle drawing and agreed scope. Upstream/downstream integration details are project-specific and will be confirmed in the final engineering scope.
- Rated capacity
- Capacity confirmed for each project configuration
- Application
- 5 gallon water bottling (spring, purified, mineral)
- Bottle type envelope
- Returnable 5-gallon (18.9L); other formats confirmed for the selected configuration
Satisfaction Guaranteed
2-Year Quality Warranty
Overseas Engineer Support Available
On Time Delivery GuaranteedPrecision engineering.
Industrial stainless structure, food-grade contact surfaces, and controls tuned for continuous-duty returnable-bottle plants serving major bottled water programs. The line is regularly specified for African and Middle-Eastern water-plant operators—including Nigerian bottled-water businesses—scaling 18.9L returnable-bottle lines for retail and home-delivery distribution.
Stainless food-grade build
Machine body and product-contact path engineered for commercial bottled water sanitation expectations.
Multi-size returnable bottles
Bottle-format compatibility is confirmed against the bottle drawing and agreed project scope.
Wash · disinfect · fill · cap
One integrated process block: automated washing and disinfecting, controlled filling, and capping for high-volume lines.
Operational Excellence.
25%
Less recurring maintenance intervention vs. loosely integrated barrel-water layouts at comparable throughput; PM and commissioning support per commercial terms.
20%
Lower auxiliary energy draw on qualified motor and hydraulic configurations vs. legacy layouts; binding kWh and utility lists ship with quotation and FAT.
The Core: Wash. Fill. Cap.
Fully automatic sequence from bottle washing to final cap torque, purpose-built for returnable 5 gallon containers.
Washing
- Automated bottle washing and disinfecting before fill entry.
- Designed to support hygienic production requirements for commercial bottled water.
- Reduced manual intervention for stable continuous operation.
Filling
- Precision nozzles target consistent fill levels with lower product loss.
- High-accuracy volume control helps protect water quality consistency.
- Process stability supports long-run commercial bottling duty.
Capping
- Automated capping mechanism secures airtight closure after filling.
- Closure compatibility can be configured by cap family and neck style.
- Final torque and leakproof performance are validated during commissioning.
Compliance & Global Standards
- ConformityCE Certified
- Quality systemISO 9001:2015
- Hygienic engineeringFollows EHEDG Hygienic Engineering Guidelines
- Product contactPremium 316L Food-Grade Stainless Steel
Declarations and material certificates issue with the project file set. Quotation and compliance pack supersede web copy.
Global tier-1 components
Product contact path uses food-grade stainless steel. Suitable for spring, purified, and mineral water projects with configurable bottle classes. Quotation and drawing set remain the binding technical baseline.
| Item | Specification |
|---|---|
| Machine type | Automatic 5-gallon (18.9L) returnable bottle washing, filling, and capping |
| Capacity | Capacity confirmed for each project configuration |
| Filling heads | Filling-head configuration confirmed with quotation |
| Bottle classes | Returnable 5-gallon (18.9L); other formats confirmed for the selected configuration |
| Construction | Industrial stainless steel with food-contact components |
| Duty mode | 24/7 high-volume commercial operation (application-dependent) |
Plant Integration & Layouts
For the adjacent PET big-bottle SKU in the same hub, see 5L–10L big bottle water filler. 5L–10L big bottle water filler.
Resource intensity
Operational reliability and hygienic control.
Food-duty construction
Stainless machine body and food-grade contact surfaces are designed for bottled water sanitation requirements.
Continuous operation
Control architecture and robust mechanics support high-volume 24/7 production environments.
Line in context.
This section demonstrates the integrated sequence for returnable 5 gallon bottles, from bottle preparation to filled-and-capped output in one automation workflow.
50+ Countries Installed24/7 Rapid Response SupportTurnkey Engineering Services
FAQ — 5 Gallon Water Bottle Filling Machine Essentials
Before PO: bottle format, capacity target, utility condition, and hygiene standard.
What output can this 5 gallon machine deliver in production?
Capacity and filling-head count are confirmed against your bottle format, cap style, and site utilities, then agreed in the quotation and verified during FAT/SAT. Tell us your target output in bottles per hour and we will size the configuration.
How is hygiene managed across washing, filling, and capping?
The machine uses stainless structure and food-grade contact components, with automated washing/disinfecting before filling and controlled capping after fill. Sanitization and validation details are project-specific and should be confirmed in technical documentation before purchase.
Which bottle sizes and water types can this 5 gallon line handle?
The 18.9L (5-gallon) format is the primary target. Other returnable bottle sizes are handled per your bottle drawing and agreed scope. For water types, filling-machine compatibility follows the bottle format and filling requirements, while the treatment process in front of the filler follows your source water and product type. Natural mineral water and spring water may follow source-specific permits and are not treated in the same way as purified or RO water. Final capacity and bottle-format compatibility depend on the confirmed project specification.
What is a 5 gallon water filling machine?
It is a filling machine built for large returnable water bottles, most commonly the 18.9L (5 US gallon) format. On this page the machine is specified as an automatic washing, filling, and capping unit: bottle washing and disinfecting, filling, and capping are combined in one coordinated process instead of being run as separate stand-alone machines. Construction is industrial stainless steel with food-contact components, and the filler is equipped with an automatic cap hopper, sorter, and feeding system.
Can the same machine fill both purified water and mineral water?
Those are two separate questions. Filling-machine compatibility follows the bottle format and filling requirements; the treatment process in front of the filler follows your source water and product type. Purified water normally runs through an RO-based train, while natural mineral water and spring water may follow source-specific permits and are not treated in the same way as purified or RO water. Because of that, we confirm the filling configuration together with the treatment scope during RFQ rather than assuming a single universal setup.
Do I need a bottle washing machine for used 5-gallon bottles?
In markets where 5-gallon bottles are collected and refilled, bottles normally need washing and disinfecting before filling. This specification already includes an automated washing and disinfecting stage inside the machine, configured with static and inserting spray and flushing technique and a non-contact washing structure, so washing is integrated rather than handled by a separate machine. Whether that integrated stage is sufficient depends on how soiled your returned bottles are and on your own hygiene standard: heavily soiled bottle pools may still call for pre-washing or additional washing capacity. Confirm against your bottle-return condition during RFQ.
What information should I provide before requesting a quotation?
Four inputs let us size the line without guesswork: bottle drawings and target sizes for your 5-gallon (18.9L) format, target output in bottles per hour together with the working pattern, the cap and closure type, and the utilities available on site including your incoming water test report. If you plan to fill natural mineral or spring water, include the source permit and water analysis, because the treatment design follows those. Site layout constraints and downstream packing requirements help us quote. Final configuration is confirmed in the returned quotation.
