PET Preforms for Beverage Bottling
Material Types

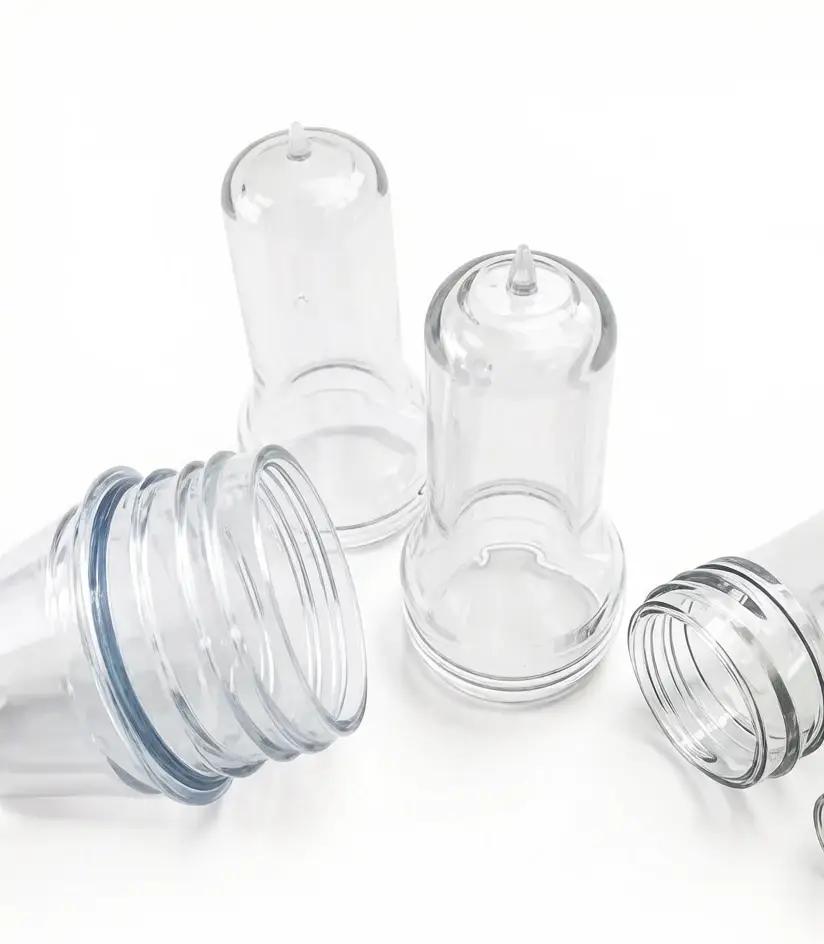

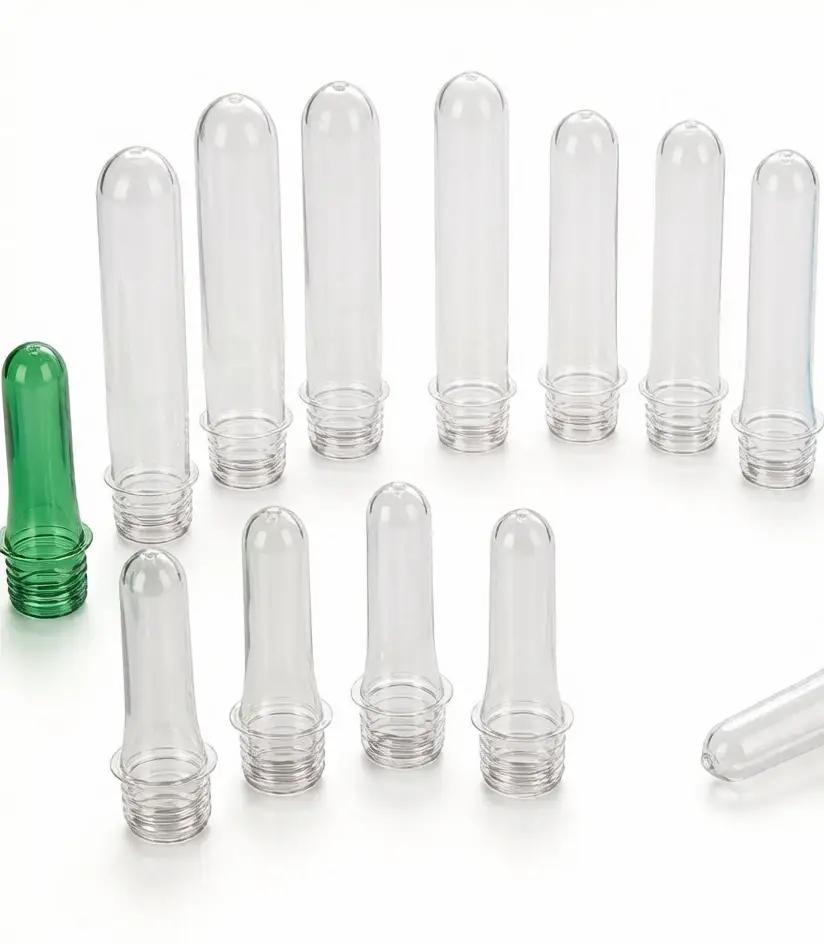

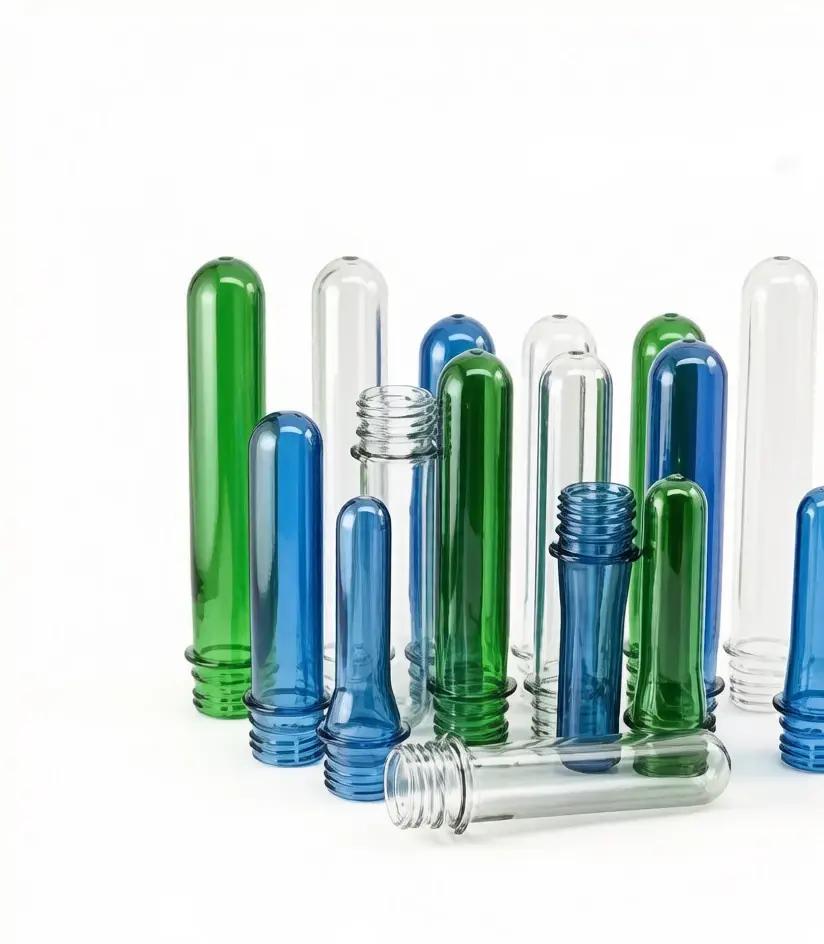

Crystal PET Preforms
Clear, high-transparency preforms for still water, CSD, and tabletop bottles. Standard PCO 1810 / PCO 1881 neck finishes with consistent I.V. Suitable for common two-stage stretch blow molding applications.
Heat-Set PET Preforms
Heat-resistant PET preforms designed for hot-fill applications up to 85°C, with enhanced thermal stability and dimensional control.
Lightweight PET Preforms
Lightweight design for material-efficient bottle solutions. Designed for high-speed thin-wall blow molding and sustainability-focused projects.
Quick Selection Guide
| Parameter | Crystal | Heat-Set | Ultra-Lightweight |
|---|---|---|---|
| Best suited for | Standard Still water, CSD, tabletop | Hot-fill Juices, teas, isotonic, sauces | Ultra-Light Eco-bottles, lightweight packaging |
| Neck finish | PCO 1810 / PCO 1881 / 29/25 | PCO 1881 HS / 38mm tamper-evident | Lightweight PCO 1810 / reduced-weight neck designs |
| Weight range | 12g – 38g | 20g – 52g | 9g – 24g |
| I.V. range | 0.74 – 0.78 dL/g | 0.76 – 0.80 dL/g | 0.72 – 0.76 dL/g |
| Material grade | Bottle-grade PET | Heat-set PET | Ultra-lightweight PET preform |
| rPET compatible | rPET options available (percentage depends on application requirements) | rPET options available for suitable heat-set applications | High recycled-content options available subject to certification and material availability |
| Blow molder compatibility | Compatible with selected iBottling blow molding systems (model confirmation required) | Extended cooling zone required | High-speed auto blow molders |
Compatible Packaging Equipment
Semi-Automatic Blow Molding Machine
View Machine →Variable-Pitch Blow Molding Machine
View Machine →Automatic Blow Molding Machine
View Machine →Beverage Applications
Ordering Your PET Preforms
- Bottle Specification
- Blow Molder Model
- Material Grade
- I.V. Target
- Annual Volume
Frequently Asked Questions
What neck finishes are available for PET preforms?
iBottling supplies PET preforms in PCO 1810 (standard water/CSD up to 1.5 L), PCO 1881 (carbonated up to 2 L), PCO 1881 HS (hot-fill), 29/25, 38mm tamper-evident, 26mm, and custom dimensions. Neck finish selection is matched to your capping machine and bottle design.
What preform weight is recommended for my bottle size?
As a general guide: 330 mL bottles use 12g–16g preforms, 500 mL uses 18g–24g, 1 L uses 28g–36g, and 1.5–2 L uses 32g–42g. Final weight depends on bottle geometry, carbonation pressure, and wall thickness requirements. Our team recommends the optimal weight during specification review.
Are PET preforms compatible with iBottling blow molding machines?
Yes — all three preform types have been reviewed for compatibility with iBottling blow molding equipment. Crystal preforms work with most iBottling models including semi-auto machines. Heat-set preforms require machines with extended cooling zones. Lightweight preforms are designed for high-speed automatic machines with thin-wall capability.
What is the minimum order quantity and lead time?
Standard MOQ is 50,000 pieces per SKU. Lead time is 15–25 working days ex-works. Custom colours, printing, or special barrier materials may require higher MOQ and extended lead time. Pallet packing is arranged by weight: 1,000–4,000 pcs per pallet.
Can preforms be supplied as part of a complete bottling line package?
Yes. PET preforms are included in turnkey bottling projects alongside blow molding machines, fillers, cappers, beverage labels, and shrink film. This ensures preform neck finish matches capper configuration, weight matches blow molder cavity design, and material grade matches beverage type — one procurement package with full compatibility verification.
