Turnkey Bottling Lines Built for OEE, Yield & CAPEX Discipline
Throughput: 2,000–40,000 BPH rotary lines for water, CSD, juice & more
Precision: repeatable fill accuracy with CIP-ready hygiene architecture
Packaging: PET, glass & cans from 250 ml retail to 20 L bulk formats
Exported to 150+ countries—spec-driven procurement welcome
Why Plant Managers & Procurement Teams Spec iBottling as OEM
CAPEX leverage: “Typically 30–40% below comparable European builds—without downgrading controls (Siemens / Schneider PLC).”
OEE-focused throughput: “Rotary turnkey bottling lines to 40,000 BPH, engineered around uptime and repeatable changeovers.”
True turnkey liquid packaging: “CAD layout, FAT, shipping, install, commissioning, and operator training—one accountable partner.”
True turnkey liquid packaging: “CAD layout, FAT, shipping, install, commissioning, and operator training—one accountable partner.”Request a technical proposal & pricing
Engineering desk reply in ~2 business hours. Your inquiry stays confidential.
TRUSTED BY GLOBAL LEADERS
Complete liquid packaging solutions—one integrator

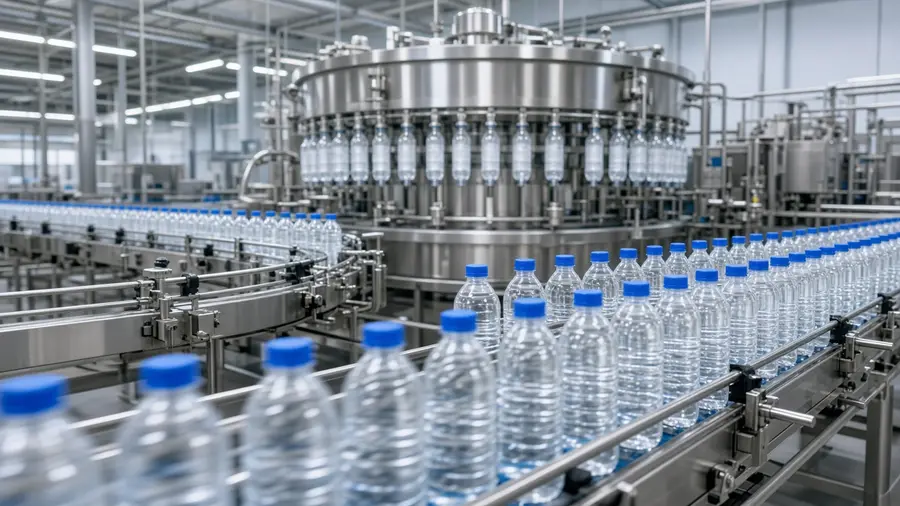

Spec turnkey bottling lines from 2,000 to 40,000 BPH for still & sparkling water, CSD, juice, and functional beverages across PET, glass, and cans. From 250 ml retail SKUs to 20 L bulk formats, we engineer, build, and integrate treatment, blow molding, rinse-fill-cap, labeling, and end-of-line packaging so procurement gets a single CAPEX envelope and a clear path to OEE.
Carbonated Soft Drink (CSD) Lines
Tech: Isobaric Counter-Pressure Filling (Stable CO2)
Speed: 2,000 – 40,000 BPH (High-Speed Rotary)
Flexibility: Handles PET & Glass (250ml – 2L)

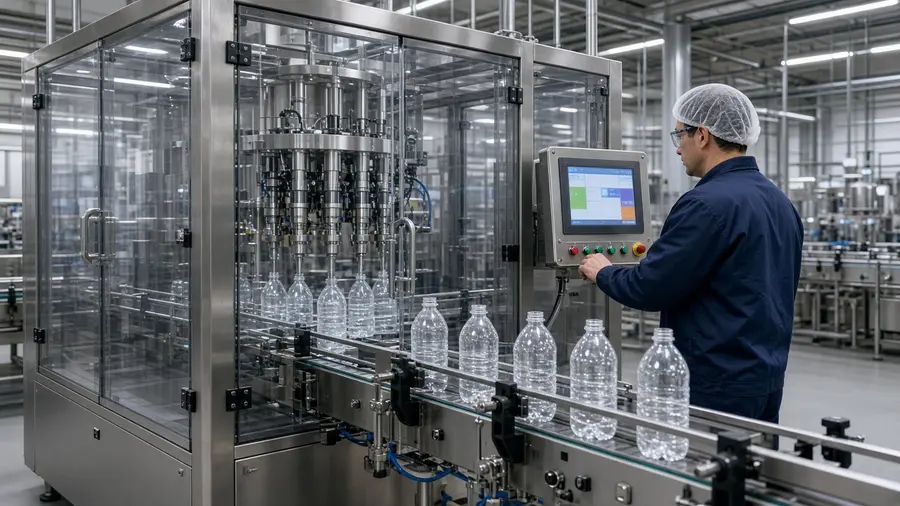

Automatic Water Bottling Plants
Type: 3-in-1 Monoblock (Rinse-Fill-Cap)
Accuracy: High-Precision Gravity / Flow Meter
Control: Siemens/Mitsubishi PLC + Touch Screen
19L / 5-Gallon Jar Filling Lines
Wash: 12-Stage High-Pressure Internal/External Rinsing
Hygiene: Automatic Cap Sterilization & Leak Detection
Capacity: 100 – 3,000 JPH (Jars Per Hour)
Hot Fill Juice & Tea Production Lines
Temp: 85°C – 92°C Precise Temp Control
System: Auto-Reflux System preventing temp drop
App: Ideal for Juice, Nectar, Tea & Energy Drinks
Linear Big Bottle Fillers (5L-10L)
🏋️ Structure: Heavy-Duty Linear Design (Non-Rotary)
🖐️ Feature: Automatic Handle Applicator & Pressing
Range: 3L – 10L Large PET/PC Containers
Glass Bottle Rinsing-Filling-Capping Monoblocks
Protection: Soft-Handling Grippers (No Breakage)
Safety: Auto Broken-Bottle Flushing System
Cap: Compatible with Crown / ROPP / Twist-off Caps
Aluminum & PET Canning Lines
Type: Filling + Seaming Monoblock Unit
Material: Compatible with Aluminum / PET / Tinplate
Seaming: Double-Seaming Technology (Zero Leakage)
Home Care & Detergent Filling Lines
Material: Anti-Corrosive PP/PVC/Ti for Bleach/Acid
Nozzle: Diving Nozzles (Anti-Foam & Anti-Drip)
Viscosity: Handles High-Viscosity Gel & Laundry Liquid
Edible Oil & Sauce Filling Lines
Method: Net Weight (Load Cell) / Flow Meter
Accuracy: ±1g High Precision (Zero Waste)
Range: 500ml – 20L Jerry Cans / Tins
Industrial RO / UF water treatment skids
- Purity: Multi-stage RO configured per project.
- Material: Full SUS304/316L Stainless Steel piping & frames.
- Control: Automated back-wash & conductivity monitoring.
High-speed servo blow molders
- Output: Up to 1,000 – 12,000 BPH (Bottles Per Hour).
- Efficiency: Servo-driven system reduces energy by 30%.
- Flexibility: Fast mold changeover for 200ml to 20L formats.
Labeling & sleeving synchronized to line speed
- Type: Compatible with OPP Hot Melt, PVC Sleeve, & Adhesive Stickers.
- Precision: Smart servo labeling with ±1mm accuracy.
- Speed: Perfectly synced with filling lines up to 40,000 BPH.
Shrink wrap & secondary packaging
- Format: Flexible grouping (3×4, 4×6, 6×8) for various packs.
- Heat Tunnel: Energy-saving circulation for tight, wrinkle-free shrinking.
- Integration: Seamless connection to Palletizers.
Line economics: ROI calculator
Stress-test labor, utilities, CIP cycles, changeovers, and waste before you commit CAPEX—see modeled payback months and cost-per-bottle in one view.
Enter current plant data below. The model layers CIP downtime, format changeovers, waste, and OPEX so finance and operations share one payback narrative.
Use iBottling’s engineering calculators to validate water chemistry, osmotic pressure, and quality targets—then align assumptions with your liquid packaging CAPEX and OEE roadmap.
Turnkey bottling lines & lifecycle support
End-to-end project lifecycle
From utility baselines and layout to SAT, ramp-up, and OEE coaching—we stay accountable after the PO, not only until shipment.
Capacity & margin modeling
Data-led: Align target BPH with CAPEX and payback.
Utilities: Water source, power, and chemistry baselines.
Modular scale: Phased expansions without dead capital.
Production analytics & OEE
OEE visibility: Downtime, waste, and CIP impact in one stack.
Energy intensity: kWh and water per thousand bottles.
Predictive care: Spares and PM windows tied to runtime.
Plant layout PDF (10k BPH reference)
Footprint: CAD-ready blocks for treatment through palletizer.
Material flow: Bottle, air, and pack lanes without bottlenecks.
Modular install: Skids sequenced for fast hookups.
Packaging engineering
Preform & bottle: Shelf impact without sacrificing line stability.
Secondary pack: Film, cartons, and pallet patterns tuned to BPH.
Lightweighting: Gram-weight targets that still pass QA.
QA / QC systems
Compliance: ISO, HACCP, and export-market documentation.
Fill control: Statistical checks on weight, volume, torque.
Package integrity: Leak, cap, and code verification.
Program management
Single owner: One PM from PO through SAT.
Logistics: Crating, incoterms, and site-ready sequencing.
Milestones: FAT, shipment, install windows you can brief the board.
Performance tuning
Rated BPH: Close the gap between nameplate and sustained output.
Changeovers: SOPs for neck rings, guides, and CIP windows.
Yield: Foam, drip, and giveaway tuned for SKU mix.
Operator & maintainer training
Floor coaching: Start/stop, alarms, and safe CIP sequences.
PM routines: Lubrication, inspection, and wear-part swaps.
First-response: Fault trees before you wait on a service ticket.
24/7 global support
Remote diagnostics: Secure PLC access when you approve it.
Field service: Mechanical/electrical specialists on-site.
Spares: Critical kits stocked for wear and seasonal peaks.
CAPEX snapshot · 3,000 BPH turnkey line
Illustrative investment envelope with utility loads and logistics—use it to benchmark your internal business case before a formal quote.
Indicative core investment:
1. Industrial Water Treatment
Power Demand: ≈15 kW- Multi-stage filtration & softening.
- Precision RO skids sized to capacity.
- UV & Ozone disinfection.
- Full SUS304/316L sanitary piping.
2. PET Bottle Blow Molding
Power Demand: ≈60 kW- 2–6 cavity molds for 200ml to 2L.
- Automated preform loading & inspection.
- Direct air conveyor integration.
- Includes chillers & compressors.
3. Filling & Packaging Monobloc
Power Demand: ≈55 kW- 3-in-1 Rinse-Fill-Cap rotary system.
- Integrated cap sterilizer & date coder.
- Servo-driven high-speed labeling.
- Automated shrink wrapper packaging.
4. Logistics & Operations
Shipping Data- Shipping: Requires 2 × 40HQ containers.
- Floor Space: 100–200 m² required.
- Depreciation: ≈10% per year.
- Consumables: Preform cost ≈$0.04/set.
PROJECT ROADMAP: FROM IDEA TO PRODUCTION
Five gated phases from concept to stable OEE—so procurement, engineering, and operations share one timeline.
Design & Project Planning (3-7 Days)
Application engineers translate your SKU mix, utilities, and target BPH into a defendable layout, utility list, and technical proposal procurement can circulate internally.
Automated Line Testing & FAT (20-30 Days)
FAT on your containers and caps proves fill curves, torque, and CIP sequences before crates leave our plant—reducing surprises at SAT.
Delivery & Global Logistics (20-30 Days)
Export crating, lifting plans, and Incoterms-aligned logistics keep heavy monoblocs intact and on schedule for your dock slot.
Installation & Commissioning (7-15 Days)
Field technicians align levels, timing, and CIP circuits, then train shifts on startup, changeovers, and fault recovery until KPIs are trending.
Support & Lifecycle Service (Ongoing)
After handover, remote diagnostics, critical spares, and optimization sprints protect the OEE you paid CAPEX for.
Turnkey
Line integration
150+
Countries Served
FAT/SAT
Documented acceptance
Lifecycle
Support
WHY GLOBAL BRANDS CHOOSE IBOTTLINGSOLUTIONS
Plant managers choose iBottling when they need turnkey bottling lines with traceable components, disciplined FAT/SAT, and lifecycle support that protects OEE. We ship liquid packaging solutions to 150+ countries with documentation procurement teams can audit.
Proven integration depth
Treatment, blow molding, and monobloc lines are time-synced in software and mechanical interfaces—fewer gray areas during commissioning.
Layouts matched to CAPEX
CAD blocks respect column grids, ceiling steel, and logistics doors—so your EPC isn’t redoing routing after equipment lands.
Manufacturing discipline
ISO 9001–backed shops, CE-minded assemblies, and stainless discipline suited to CIP chemistry and swing shifts.
Service tied to KPIs
Remote access when you allow it, prioritized spares, and field teams who speak PLC—not just torque wrenches.
GLOBAL SUCCESS STORIES
WATER BOTTLING EQUIPMENT & BEVERAGE FILLING LINES – CLIENT SUCCESSSTORIES
On-the-record feedback from founders, OEM partners, and senior field engineers who run our lines daily.
“Dialogs with John have provided years of enlightened understanding of beverages and manufacturing issues. He is adept at explaining complex industry issues to a ‘just water’ guy like me.”
“An excellent and high-quality supplier for beverage industries. I used his machines in different operations and observed that the output capacity and quality are always found to be excellent.”
“Great to work with John. He is highly experienced in the beverage industry in China and proved to be very helpful for a European company operating in the international market.”
“It was great to collaborate with their team. They are highly experienced and knowledgeable, showing us how new technologies lead to direct quality improvements and efficiency.”
“Dedicated to managing complex jobs with excellent results. A highly technical professional who always gives full effort to ensure production management runs smoothly.”
Verified Field Intelligence
REAL-TIMEOPERATIONAL DATA
Unfiltered chats from the plant floor—evidence of how iBottling turnkey bottling lines behave years after SAT.
“They work well! No problem.”
— Client feedback on 1,200 BPH (5-Gallon) & 12,000 BPH (500ml) lines.
“In the past we have bought and we are very satisfied.”
— Returning client evaluating new budgets.
“Very happy with service and product.”
— Client expanding with our 600BPH filling line.
Regional directors, global coverage
AUTHORIZED WATER BOTTLING & BEVERAGE FILLING NETWORK
Speak with a regional lead who owns liquid packaging projects end-to-end—same timezone for RFIs, FAT witness, and after-sales escalation.
JUAN
STAN
Ready to defend your next CAPEX brief?
Send targets for BPH, package mix, and utilities—our engineers return a layout, utility table, and turnkey bottling line pricing you can present to finance.
Book technical proposal →GLOBAL INTELLIGENCE & ENGINEERING INSIGHTS
BOTTLING TECHNOLOGY & INDUSTRYUPDATES
Deep dives on PET lightweighting, preform strategy, membrane OPEX, and line physics—written for plant managers and procurement teams running 500–20,000 BPH liquid packaging assets.
What Is BPH in Bottling?
Gross Capacity vs Net Production Capacity: What Your Bottling Line Really Outputs
What Is The Difference Between Carbonated and Non-Carbonated Beverages
Water Bottling Bottle Handling Poka Yoke 2026 Ultimate Guide
Water Bottling Preform Cavities Bph 2026 Ultimate Guide
Water Bottling Inhouse Blow Vs Offline 2026 Ultimate Guide
Water Bottling Rpet Ratio Mechanics Cost 2026 Ultimate Guide
Water Bottling Pet Lightweighting 1881 26 22 2026 Ultimate Guide
Beyond beverages, see our detergent filling machine and plant utilities such as the cooling tower distributor page, or read what firms produce similar product portfolios to PepsiCo.
EXECUTIVE BRIEFING
CRITICAL PROCUREMENTANSWERS
Straight answers on mobilization, payment security, training, changeovers, spares, and asset life—what procurement and plant directors ask before releasing CAPEX.
Do you mobilize engineers for install and commissioning in our country?
Yes. Senior mechanical and electrical engineers travel to your site, manage mechanical alignment, utilities hookup, and SAT sign-off, and stay until the line sustains the contracted BPH band with stable OEE trending.
What payment structure should procurement expect on a turnkey bottling line?
Typical structure is 30% T/T to release manufacturing and 70% before shipment—released only after a witnessed FAT (live stream or your inspector on floor). For larger CAPEX packages we support 100% L/C at sight subject to bank review.
Will our operators and maintainers receive formal training?
Yes. During commissioning we run structured sessions on PLC navigation, alarm response, CIP-ready cleaning circuits, mechanical adjustments, lubrication routes, and lockout/tagout—so your team owns daily uptime, not only the vendor.
How fast can we execute bottle format changeovers?
Neck-handling systems and quick-release change parts keep rotary PET lines inside roughly 30–45 minutes for common volume steps (e.g., 500 ml ⇄ 1.5 L), limiting OEE loss between SKUs.
How are spare parts and emergency support handled across borders?
Controls and pneumatics leverage Siemens, Festo, SEW-class components so many items are locally sourceable. Proprietary wear parts ship globally within 24 hours when stock allows, and remote PLC access (with your IT approval) accelerates software-related downtime events.
What warranty and asset life should finance model?
Mechanical and electrical coverage runs 12–24 months depending on scope, excluding normal wear items. Frames and product-contact surfaces in 304/316L stainless are engineered for 15+ years of heavy-duty, CIP-ready service when PM plans are followed.
